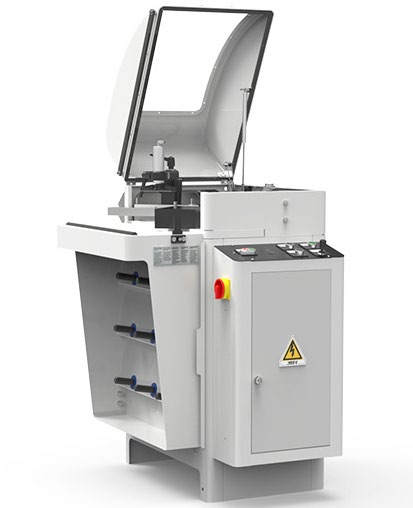

FOM MISTRAL 26 A

End milling angle 45° Rh, 90°, 45° Lh and intermediate angles
Milling tool unit rotation speed 7000 rpm
Max. milling tool size Ø 175 mm
Automatic feed with rapid approach controlled by milling tool unit photocell
Quick change milling tool unit
Milling tool unit balancing system
Milling units magazine with 9 slots
Spray mist blade lubrication system
Carriage stroke: X max= 350 mm
Milling depth: Y max = 65,5 mm
Maximum milling unit height: 125 mm
Working capacity: see attached diagram
Patented system that allows profile positioning without the need for goniometries
Work table height 900 mm
Non-abrasive work table that will not damage painted profiles
Set up for the extraction of chips and fumes
Integral safety casing around work table with opening lock
Double working pressure servo-controlled in low pressure
